Doormax 5000G Double Glazed Operable Wall

overview

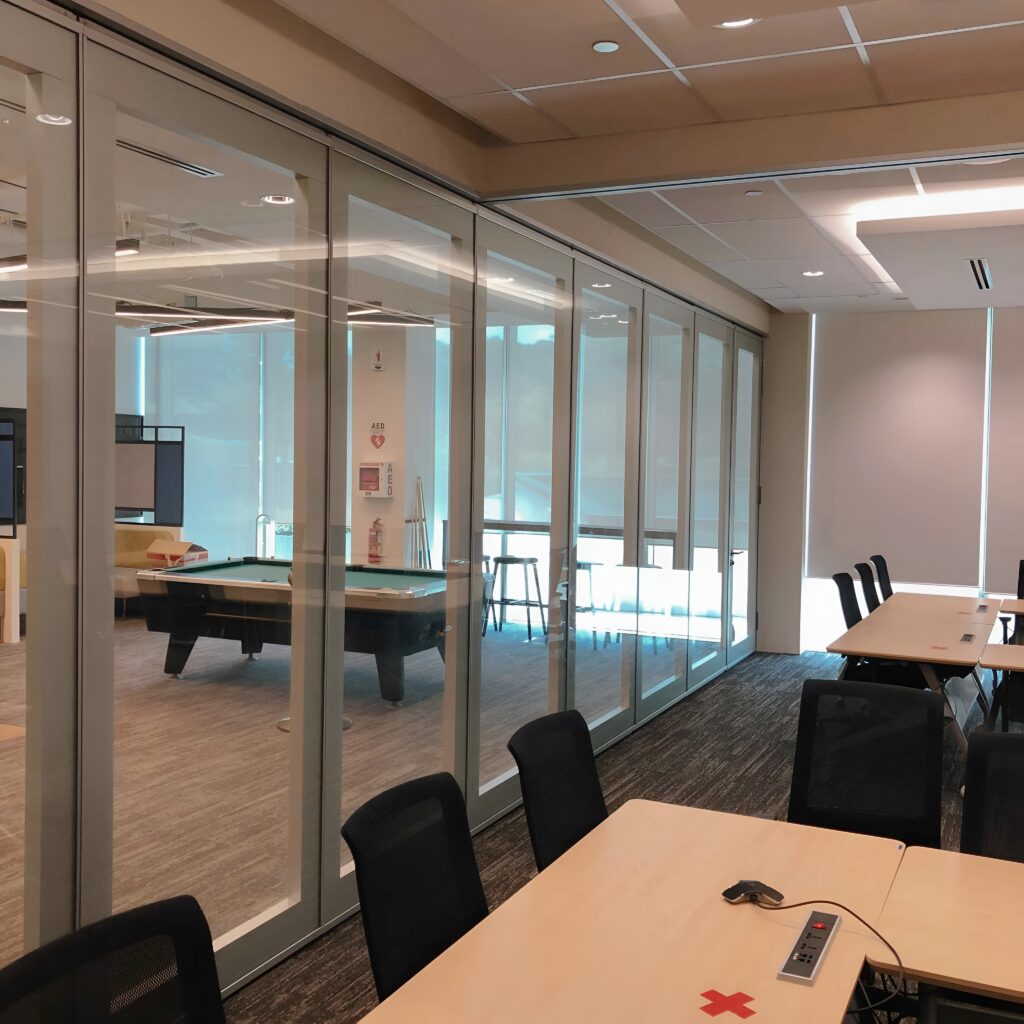

The 5000G double-glazed operable partitions combining the transparent aesthetic as well as excellent acoustic performance. By bringing daylight into every partitioned room, transparent glass creates a bright and stylish environment to your space and it is also an eco-friendly solution to save lighting power and cost.

With the double glass panel system acoustic performance is further enhanced to up to STC 48. Characterized with its welded heavy-duty galvanized steel frame. With improved design on the frame structure, 5000G Glasswall shows maximum clear view and is easy to operate.

A colored powder coat finish on the aluminum and glass border can be upgraded to cater different design requirements. When protection against light and glare is required, the system can be enhanced through integration of venetian blinds or by installing smart glass, which can also turn your room to a private room

By utilizing a double-glazed panel system, the 5000G achieves a high level of acoustic performance, reaching up to STC 48 (or STC 50 as an enhanced option). The inclusion of mechanical seals and integral sweep seals at the top and bottom ensures outstanding acoustic and thermal insulation when the wall is closed.

Typical SPECIFICATIONS

The transparent double glazing allows maximum daylight penetration, creating a bright, spacious, and modern environment while serving as an eco-friendly solution to reduce artificial lighting costs. Panels operate effortlessly with an Doormax-directional track system, providing high ease of use and unlimited flexibility in panel stacking and room reconfiguration. The system can be safely and stylishly used in a wide array of demanding commercial and institutional spaces, including offices, conference rooms, educational institutions, private meeting areas, and high-end hospitality venues.

	Doormax 5000G Double Glazed Operable Wall
Model	Doormax 5000G
Acoustic Ratings	STC 46 or 48
Max Height (m)	3.6
Max Opening Widths (m)	Unlimited
Panel Configuration	(Single)
Acoustic Seals / Sweeps	With top and bottom mechanical seals and sweep ; 25mm top and bottom clearance
Pass Doors / Pivot Doors	Optional
Lever Closure	Optional
Handle & Floor Locks	Optional – master key prep, core cylinder key, thumb turn & pin
Track / Stacking Options	Centre Stacking, Side Stacking or Remote Stacking
Standard Frame Finishes	Natural Anodized or Powder Coated
Glass Types	8 + 10mm Toughened Standard 10mm Toughened Standard + 10mm Laminated Standard
Approx. Weights	62-67kg / m2

Download brochure

Doormax Frameless Glass
Partition Wall Catalog

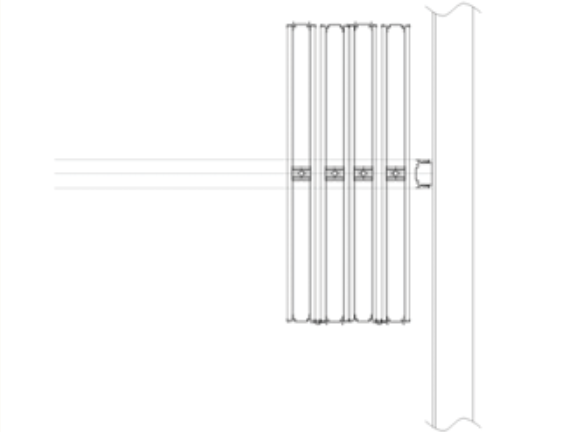

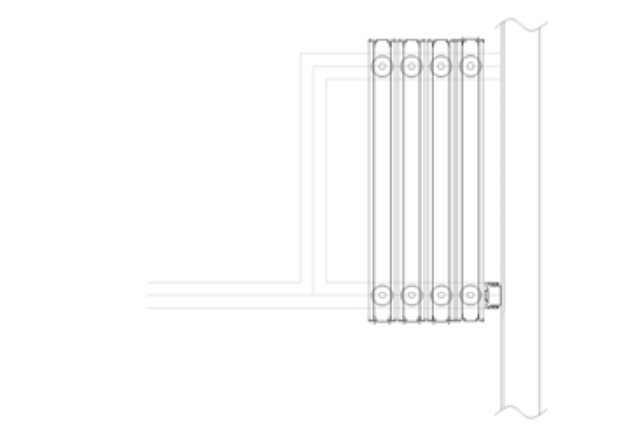

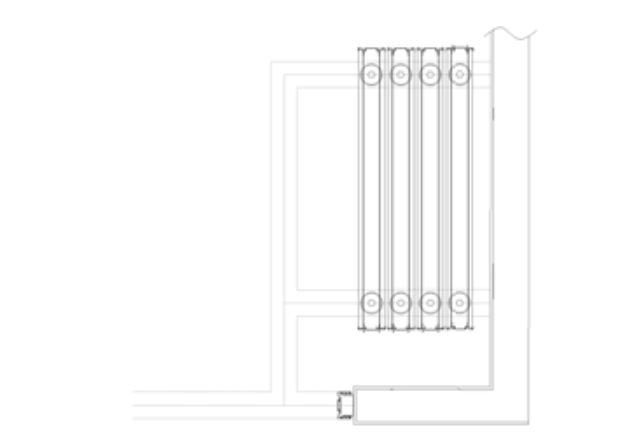

Standard Stacking Configurations

Doormax accommodates three choices for stacking of panels to the side when opening:

*Please note: for alternative stack arrangements, please contact a DOORMAX representative. We will be happy to assist you.

Technical Drawings
